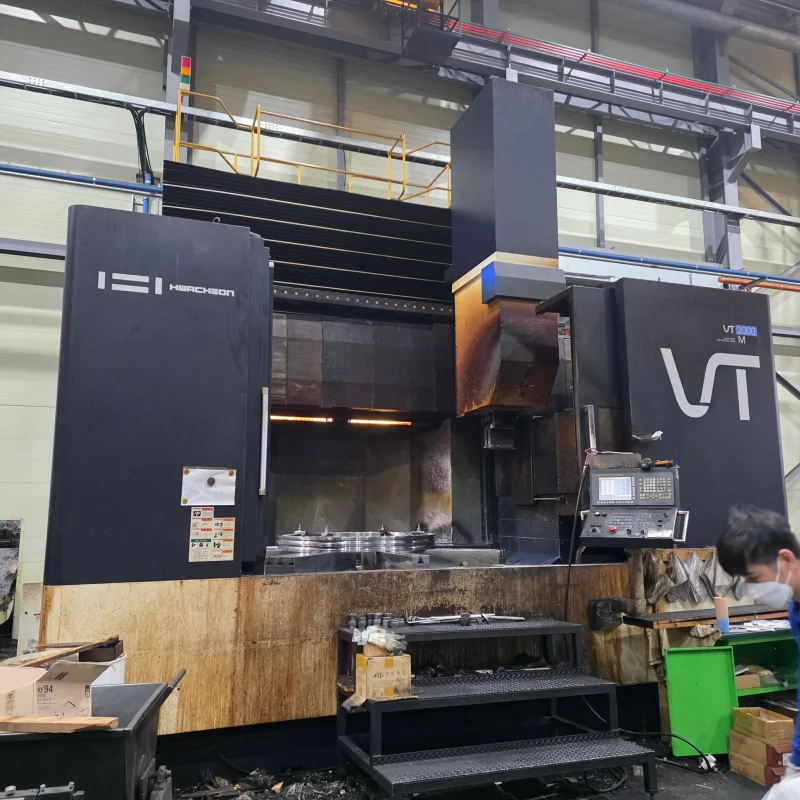

2018 year

Table 2000Swing 2650Max. TH 2100W stroke 1100Z stroke 1000AC 60/75kwMax. 240 rpmMilling spindle AC 22/26kwMax. 3000 rpmC axis 0.001Fanuc 31iAATC 14Linear scale

2012 year

 Fanuc 31i 2650 mm (104.33“) 2500 mm (98.43“) Max. cutting height Table dia. Table speed Max. table load Max. torque X – travel Z – travel W – travel Motor Table Milling Ram size 2100 mm (82.66“)

2012 year

Table 2000Max. Turning dia 2500Max. Swing 2650Max. Turning height 2100Z stroke 1000W stroke 1100Table speed 240 rpmTable motor AC 60/75kwMilling spindle AC 22/26kwFanuc 31iA

2015 year

720MM SWING , 3000MM TURNING LENGTH, SIEMENS CONTROLLER

2015 year

1.System Siemens 840D2. X -250~+4100mm3. Z 1500mm4. W 2000mm5. Table Ø45006. Max. Swing Ø50007. Height 2500mm8. Max. Load 40Ton9. Table speed 50RPM10. Table Motor 145/105Kw11. 12ATC M6pcs + T6pcs12. R

2011 year

Table 2000Swing 2650Max. Turning dia. 2500Max. Turning height 2100Z stroke 1000W stroke 1100Ram size 250 x 250Spindle motor AC 60/75kwSpindle speed Max. 240 rpmC axis indexing 0.001C axis speed 2 rpmM

2012 year

Siemens 828DChuck 34”Swing over bed 1080mmSaddle swing 720mmMax. Turning dia. 1000mmDistance between center 6000mmX/Z 520mm / 6000mmSpindle bore 155mmMax. 400RPMAC 23 / 18.5KwTurret H4Built-in Tailsto

2009 year

1000MM CHUCKFanuc 0i-TCChuck dia. 40inchMax. Swing 1350mmMax. Turning dia. 1320mmMax. Turning height 950mmTable speed 630RPMTable motor 55 / 45KwTurret 12 nos. Milling spindle 3000RPMMilling spin

2003 year

Hwacheon Sirius 1250 year 2003XYZ 2500/1250/750Table size 2800 x 1250ATC 40Fanuc 18iMB

2008 year

XYZ 2200/850/750Table 2150 x 850ATC 24EAFanuc 18iMBChip conveyor

2015 year

10 INCH CHUCK
