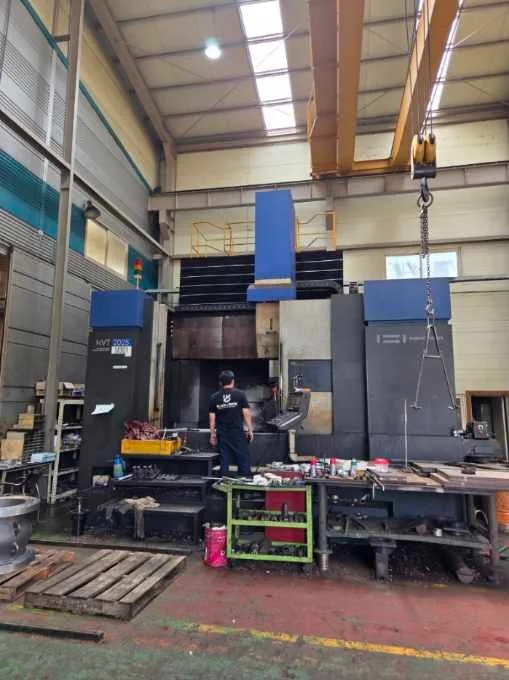

HWACHEON CNC VTL CHUCK 2000MM / SWING 2500MM WITH C AXIS HWACHEON HVT-2025
MACHINE MORE INFORMATION
| Machine | HWACHEON CNC VTL CHUCK 2000MM / SWING 2500MM WITH C AXIS |
| Brand | HWACHEON |
| Model | HVT-2025 |
| Year | 2012 |
| Specification | Fanuc 31i 2650 mm (104.33“) 2500 mm (98.43“) Max. cutting height Table dia. Table speed Max. table load Max. torque X – travel Z – travel W – travel Motor Table Milling Ram size 2100 mm (82.66“) 2000 mm (80“) 1 ~ 240 rpm 15000 Kg (33000 lbs) 49862 Nm-315 ~ + 1835 (-12.4“ ~ +72.24“) 1000 mm (39.37“) 1100 mm (43.31“) 75/60 Kw (100/80 Hp) 26/22 Kw (35/29.5 Hp) 250 x 250 mm (9.84“ x 9.84“) C-axis Milling spindle Tool type ATC Power source Weight Dimensions 0.0001 ͦ 3000 rpm MAS BT 50 14 tools |
