2018 year

Control Fancu 31i-MBX/Y/Z axis travel 3060/1600/760mmDist. from spindle nose to table surface200-960mmTable size 3260x1500mmDoor height 960mmDist. between columns 1700mmSpindle speed 8000rpm (gear typ

2018 year

Control Fanuc 31i-MBTable 4000 x 1500 mmBetween columns 1600 mmXYZ – 4000 x 1600 x 760 mmDistance from table to spindle240 ~ 1000 mmSpindle 8000 rpmTool type BT50ATC 32 toolsChip conveyerFull enclosed

2018 year

Control Fanuc 31i-MBTable 6020 x 2400 mmBetween columns 2700 mmTable load 20 tonsX – 6000 mmY - 3200 mmZ - 1000 mmDistance from table to spindle200 ~ 1200 mmSpindle 8000 rpmTool type BT50ATC 60 toolsA

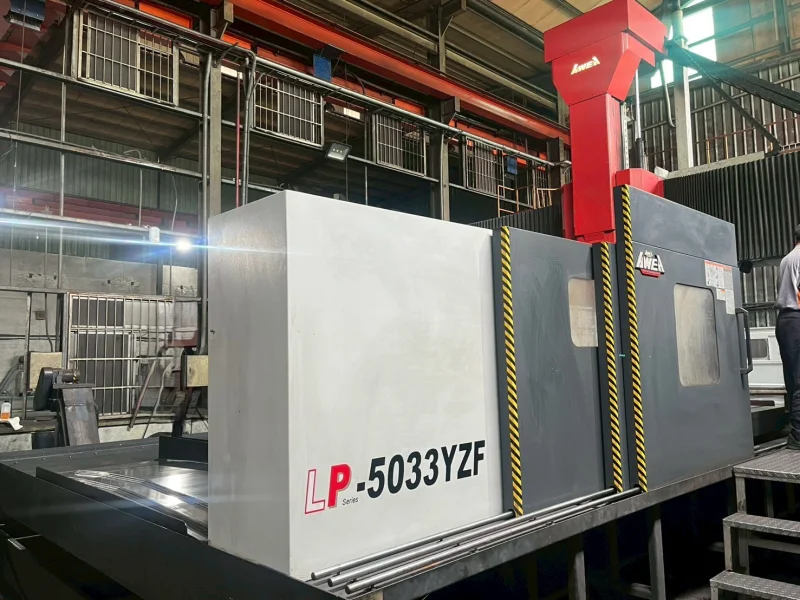

2017 year

X / Y / Z axis travel: 5000 / 4000 / 1000 mmTable size: 5200 x 2400 mmMax. Table load: 18 tonDistance between columns: 3500 mmDistance between table top to spindle nose: 200 ~ 1200 mmWith Fanuc 31i-BW

2018 year

XYZ 4000/3300/760Spindle nose to table top 240~1,000Between columns 3,500Table 2,400 x 4,020Spindle speed 10,000 rpmFanuc 31iATC 3290 deg. Angle head

2017 year

X / Y / Z axis travel: 5000 / 4000 / 1000 mmTable size: 5200 x 2400 mmMax. Table load: 18 tonDistance between columns: 3500 mmDistance between table top to spindle nose: 200 ~ 1200 mmWith Fanuc 31i-BW

2004 year

X-axis 3060, Y-axis 1600, Z-axis 760 Passing width 1700 Table size: 1500 X 3250 Z-axis passing height: 200~960FANUC 18i-MB, Tool: BT50, 6000RPM ATC -60tools, Linear scale

2008 year

XYZ 8000/4000/1000Between columns 4800Max. 4,000 rpm (Gear type)Fanuc 18iMBATC 32AAC90deg. angle head

2004 year

Gantry typeTable 3800 x 6000Between columns 4800Fanuc 18iMB6000rpm (built-in spindle)Auto head change & index 5 deg. *72 POS.90 degree angular head

2004 year

X - 6000MMTable 3800 x 6000GANTRY TYPEBetween columns 4800Fanuc 18iMB6000rpm (built-in spindle)Auto head change & index 5 deg. *72 POS.90 degree angular head

2008 year

XYZ 8000/4000/1000Between columns 4800Max. 4,000 rpm (Gear type)Fanuc 18iMBATC 32AAC90deg. angle head

2008 year

XYZ 8000/4000/1000Between columns 4800Max. 4,000 rpm (Gear type)Fanuc 18iMBATC 32AAC90deg. angle head

2012 year

AWEA LP-4025Y YEAR 2012, X-4000/Y-2500/Z -760MM, BETWEEN COLUMN 2700MM, TABLE 2400 X4200MM,  SPINDLE 6000RPM, FANUC18I-MB, ATC 60, BT 50,  9 DEG INDEXING HEAD (5 DEG INDEX) AND C AXIS

2007 year

X 5000 AND Y 2500, ANGULAR HEAD, FANUC 18i-MB, COOLAN TANK , CHIP CONVEYOR

2009 year

X 6000 , Y 3300, AND WITH ANGULAR HEAD AND C AXIS, FANUC 18i-MB, COOLANT TANK. CHIP CONVEYOR

2005 year

 X - 3000mm, Y- 2100mm, Z-760mm, Between column : 2700 mm , Table : 3020 x 2010mm , spindle , 6000 rpm, Bt50, Table load 10 tons , . , ATC , coolant tank, chip conveyor.

2010 year

XYZ 4,000/2,500/760BETWEEN COLUMN 2,700TABLE SIZE 2400 X 4000SPINDLE SPEED MAX. 8,000 RPMATC 32FANUC 18IMB

2012 year

2005 year

CNC: Fanuc 18i-MB- Between columns : 3,200 mm-XYZ 6,000/3,900/1,000 mm- Table: 2,400 × 6,000 mm- Spindle : 6,000 RPM (BT-50)- ATC: 60- AAC: 1

2005 year

Between columns 2700Angle headATC 32

2003 year

XYZ 4000/2500/760Bet. Columns 2700Table size 2400 x 4000Spindle speed 8000 rpmFanuc 18iMBATC 32Manual angle head

2012 year

XYZ : 4000/2700/760MM , TABLE 4040X 2400MM, BT50, 60 TOOLS

2009 year

Controller: FANUC 18iMBX/Y/Z axis travel: 6,000/4,000/1,000Spindle nose to table surface: 590-1Dist. Between columns: 3,500mmTable size: 6,000x3,000mmSpindle Speed: 4,000rpm (Gear type BT50 / 60ATC)Ma

2007 year

Controller: FANUC 18i MBX/Y/Z axis travel: 4,000/2,500/1,000mmDist. between columns: 2,700mmDoor height: 1,400mmTable size: 2,400x4,000mmMax. Table load: 15,000 kgSpindle speed: 4,000rpm (Gear)BT50 /
