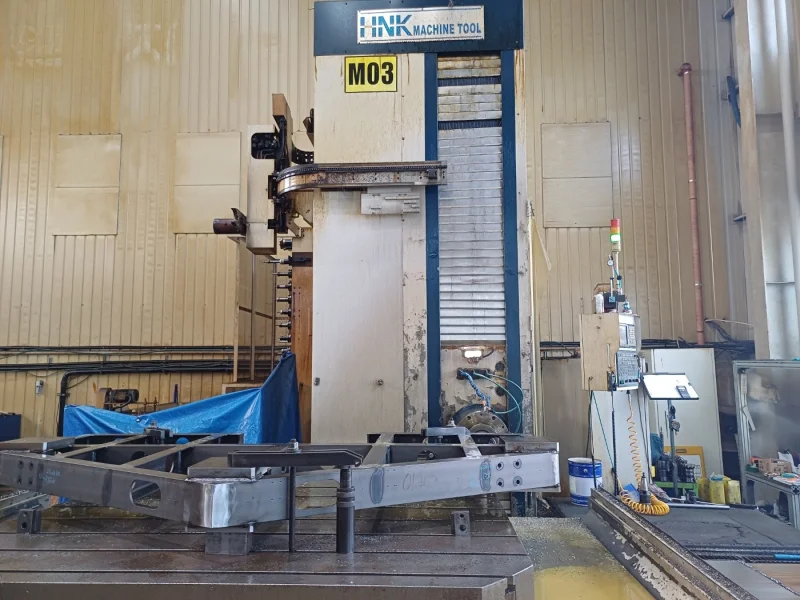

HNK CNC HORIZONTAL BORING HNK HB-130X
MACHINE MORE INFORMATION
| Machine | HNK CNC HORIZONTAL BORING |
| Brand | HNK |
| Model | HB-130X |
| Year | 2006 |
| Specification | Fanuc 18i-MB Rotary table 2000 x 2200 mm Indexing accuracy 0.001 ° (90 ° pin) Load on table : 20000 Kgf XYZW 3000 mm 2300 mm 1300 mm 700 mm Spindle 130 mm Milling spindle 225 mm Speed 5 ~ 2500 rpm (22/26 Kw) BT50 / ATC - 40 tool Rapid XYZ 10000mm/min, W 6000mm/min cutting feed rate XYZW 1-4000mm/min Floor space : 7390 x7550x5110mm machine weight : 40200 kg |
