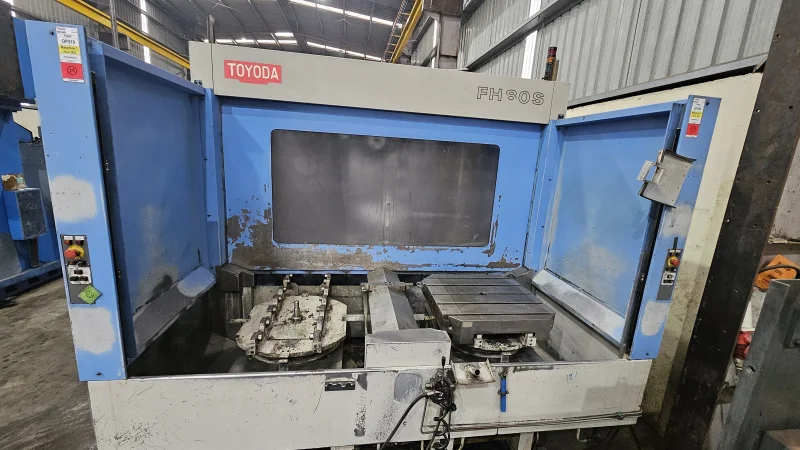

▪ TWIN PALLET HORIZONTAL MACHINING CENTRE
▪ 120 STATION ATC

TABLE

Table Size 1050 X 1050 MM
Maximum Load Capacity 3,000 KGS
Minimum Index Angle 1°

FEED

X-Axis 1600 MM
Y-Axis 1400 MM
Z-Axis 1150 MM
Distance from Table Surface to Spindle Centre 50 ~ 1450 MM
Distance from Table Centre to Spindle Nose 20 ~1400 MM

SPINDLE

Spindle Taper BT50
Spindle rpm 10-6,000 RPM
Spindle Motor Output (Max/Cont.) 26.0 / 22.0 KW
Spindle Torque (Max/Cont.) 1,267 / 1,071 NM
Type GEARED HEADSTOCK

FEED RATE

Cutting Feed Rate X, Y and Z-Axis 1-24000 MM/MIN
Rapid Feed Rate X, Y and Z-Axis 24000 MM/MIN
ATC
Number of Tools 120
Tool Type BT #50
Maximum Tool Diameter adjacent pockets Ø 120 MM
Max. Tool Diameter without Adjacent Tools Ø 245 MM
Maximum Tool Length 600 MM
Maximum Tool Weight 35 KGS
Tool Change Time – Tool to Tool 3 SEC

APC

Number of Pallets 2
APC Type SHUTTLE

POWER SUPPLY

Electric Power Supply 61 KVA
Voltage 415V / 3PH / 50HZ

Floor Space (L x W) 4,965 X 7,775 MM
Weight 30,000 KGS
