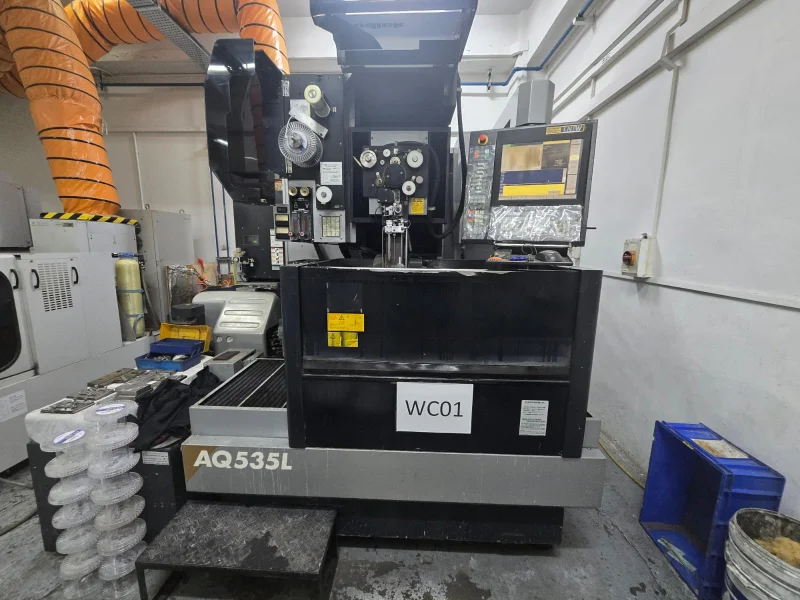

Sodick AQ535L EDM Machine
Key Specifications:
X/Y/Z Axis Travel: 550 x 350 x 300 mm (21.6" x 13.7" x 11.8")
U/V Axis Travel: ±80 mm (±3.1")
Maximum Workpiece Dimensions: 1100 x 720 x 270 mm (43.3" x 28.3" x 10.6")
Maximum Workpiece Weight: 680 kg (1,499 lbs) submerged
Wire Diameter Range: 0.1 - 0.3 mm (0.004" - 0.012")
CNC Control System: Sodick LN1W
Machine Features:
Linear Motor Drives for high-speed, high-accuracy movement
Automatic Wire Threading system
Submerged cutting capability
Dielectric tank capacity: 730 L (192.8 gallons)
Filtering system with 2 replaceable paper filters
Machine Dimensions and Weight:
Dimensions (L x W x H): 2175 x 1750 x 2260 mm (85.6" x 68.9" x 89")
Machine Weight: Approximately 4,000 kg (8,818 lbs)
