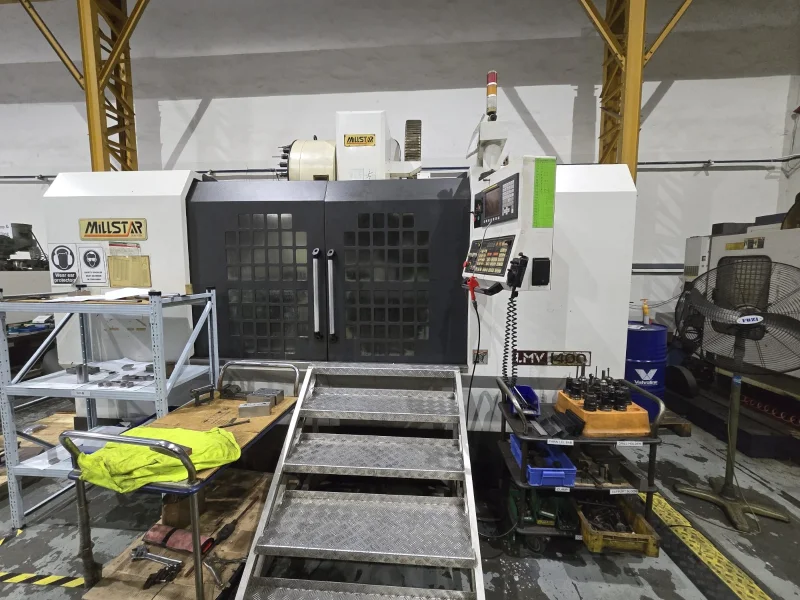

Millstar JY-LMV1400 Machining Center
Table Size: 1550 x 700 mm
Maximum Table Load: 1500 kg
Travel (X/Y/Z): 1400 x 720 x 610 mm
Spindle Taper: BT40
Spindle Speed: 8000 rpm (standard)
Features:
New X & Y axis Linear Guides installed (July 2024)
New X axis Ball Screw installed (Aug 2024)
High-rigidity structure for precision machining
Large work envelope suitable for medium to large workpieces
Robust table with high load capacity
Wide range of applications in various industries
Fanuc Controller
Renishaw Primo System with LTS:
Prima System kit comprise of
Radio Part Setter (Work Piece Touch Probe: Work piece measurement /referencing)
Primo LTS System for Tool length setting, broken tool detection and thermal compensation on all sizes of CNC machines.
Probing Feed Rates: 2000mm/min
Repeatability: 1um 2sigma
Durability: Protection class: Equivalent to IP68 as per Manufacturer Memo
Primo & LTS Interface- Interface to control probes and Tool setter, display and transfer values to machine control
