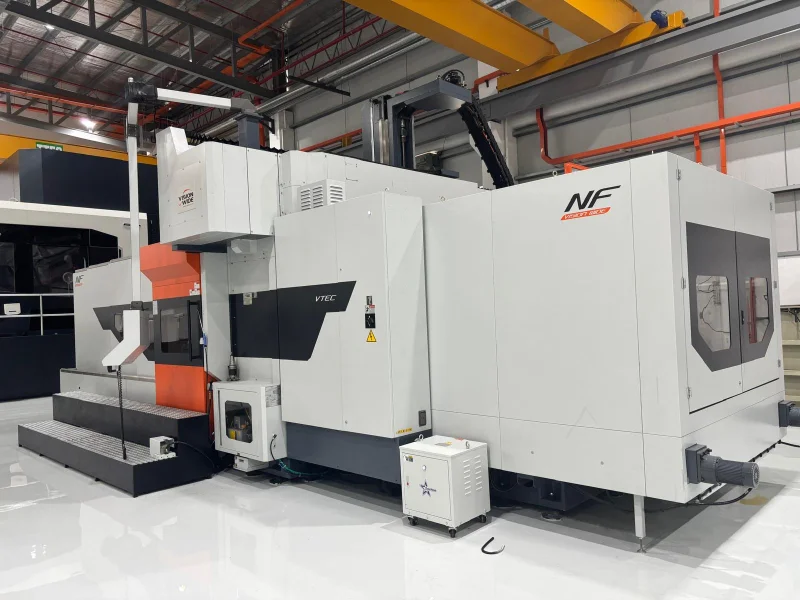

MACHINE SPECIFICATION: -

-  BT50 SPINDLE TAPER

-  X / Y I  Z AXIS TRAVEL: 4200X3000X920MM

-  TABLE SIZE: 4000X2050MM

-  MAX . TABLE LOAD : 16,000KGS

-  SPINDLE MOTOR (CONTINUOUS/ 30 MINUTES RATED): 18.5 /22KW

-  SPINDLE NOSE TO TABLE: 150 - 1070MM

-  MAX . SPEED (BOX WAY I 2-STEP GEAR): 4000RPM

-  CAPACITY(ARMTYPE): 40 TOOL ATC

C/W STANDARD ACCESSORIES: -

-  SPINDLE OIL COOLER

-  TWIN HYDRAULIC CYLINDERS WITH PRESSURED AIR ASSISTANCE BALANCING SY

-  X, Y-AXIS BALL SCREW SUPPORT DEV ICE (X-AXIS 4M ABOVE, Y-AXIS 3M ABOVE)

-  CENTRALIZED AUTO. LUBRICATION SYSTEM

-  INDEPENDENT LUBRICATION OIL COLLECTOR

-  AIR BLAST THROUGH SPINDLE

-  WASH GUN AND PNEUMATIC INTERFACE

-  CUTIING COOLING SYSTEM

-  ENCLOSED SPLASH GUARD (NF-SERIES,2 - 6M AS STD

-  SWIVELING ARM TYPE OPERATIONAL PANEL

-  SCREW TYPE CHIP CONVEYOR ON TABLE SIDES

-  CATERPILLAR TYPE CHIP CONVEYOR

-  HEAT EXCHANGER FOR ELECTRICAL CABINET

-  WORKING LAMP

-  OPERATION CYCLE FINISH AND ALARM LIGHT

-  MOVABLE MANUAL PULSE GENERATOR

-  FOOTSWITCH FOR TOOL CLAMPING

-  RJ45 INTERFACE

-  X,Y,Z-AXIS ABSOLUTE PULSE CODER FEEDBACK

-  X ,Y, Z-AXIS TRAVEL HARD LIMITS PROTECTION

-  SPINDLE CUTTING LOAD SOFTWARE PROTECTION

-  AUTO POWER OFF

-  VISION WIDE FX GRAPHICAL USER INTE RFAC E (FANUC ONLY)

-  FOUNDATION PADS AND BOLT KITS

-  ADJUSTMENT TOOL AND TOOL KITS

-  TECHNICAL MANUA LS

(OPERATION MANUAL, MAINTENANCE MANUAL, CIRCUIT DIAGRAM)

CONTROLLER-  FANUC Oi-MF CNC

OPTIONAL ACCESSORIES (INCLUDED):

MSC-AS-B210615

Z AXIS TRAVEL 1020MM/ BOX WAY

MSC-AS-B210616

Z AXIS TRAVEL 1020MM, BOX WAY, HIGH COLUMN +300MM.

THE DISTANCE FROM SPINDLE NOSE TO TABLE 450- 1470MM

MSC·AS·B210617

6,000RPM 2-STEP GEAR SPINDLE/ Z-AXIS BOX WAY IFANUC a22i (22/26kW) /#50

MSC-AS-B210618

V / H 60 TOOLS ATC/#50 (FLOOR TYPE)

MSC-AS-B210630

OIL SKIMMER

MSC-AS-B210631

DATA SERVER 2G

MSC-AS-B210622

AUTO . TOOL LENGTH & DIA. MEASUREMENT RENISHAW TS-27R

MSC-AS-B210623

PREPARATION FOR USE OF ANGLE HEAD - MST BRAND: A 63 HFD 12S

MSC-AS-B210624

TRANSFORMER

 MSC-AS-B210625

AC ATTACHMENT INTERFACE A

(C AXIS AUTO INDEXING 5 DEGREE)

MSC-AS-B210626

VAR06-30A :AC 90 DEGREE ANGULAR HEAD

(C AXIS AUTO INDEXING 5 DEGREE)

MSC-AS-B210627

MULTI-HEADS MAGAZINE (1 HEAD + 1 COVER)

MSC-AS-B210664

HEIDENHAIN LINEAR SCALES (X,Y, Z=1020MM)
