FANUC18iMB
TABLE   3400x10000
Width  4600
Height 4200
Ram stroke  1360
ATC 60
3500RPM
5 degree index angular head

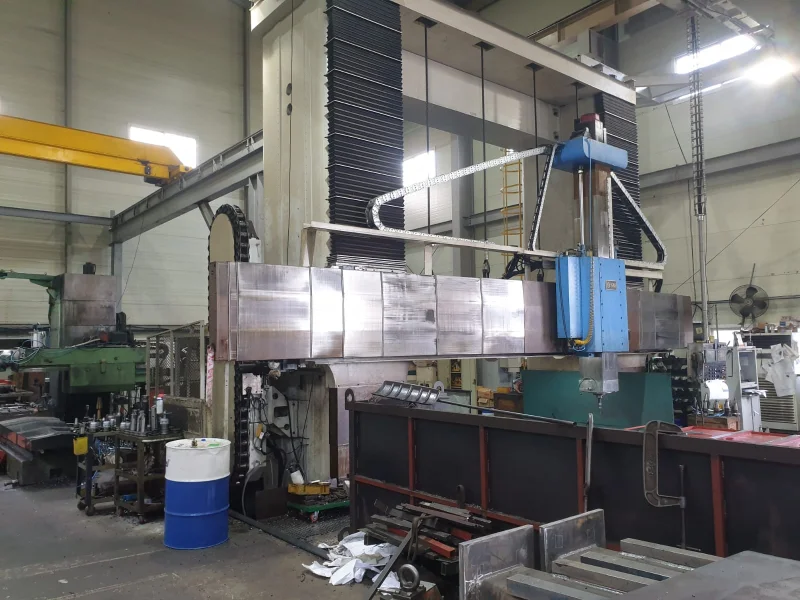

1    Model No        SM-450
2    Width between column    4500 mm
4    Table Size Width    3500 mm
5        Length    12000 (Opt)
6        Max table load    100 Ton
7    Travel    X-Axis    10,000  mm
8        Y-Axis    6000 mm
9        Z-Axis (Ram stroke)    1500 mm
10        W-Axis (Crossrail)    3500 mm
11    Spindle    Ram size    500x500 mm
12        Spindle taper    BT 50
14        Spindle speed (Gear)     500~6000*High), 0-1000(Lower) RPM
15        Spindle driver motor    37/45 Kw
16    ATC    Tool storage capacity    40
17        Max tool weight    25 Kg
18        Max tool size (Dia)    260 mm
19        Max tool size (Length)    400 mm
20    Feed    Cutting feed rate    0-6000 mm/min
21        Rapid traverse (X,V)    10,000 mm
22        Rapid traverse (Z)    10,000 mm
23        W-Axis    7000 mm/min
24    Accuaracy    Positioning accuracy    +/- 0.01mm/1000 (+/- 0.0004"/39.37")
25        Repeatability    X,Y,Z :+/-0.003 (+/-0.0001") W:+/-0.005(+/-0.0002")
26    Machine weight        200 Ton
27    Machine size (LxWxH)        2400X9800X9000 mm
