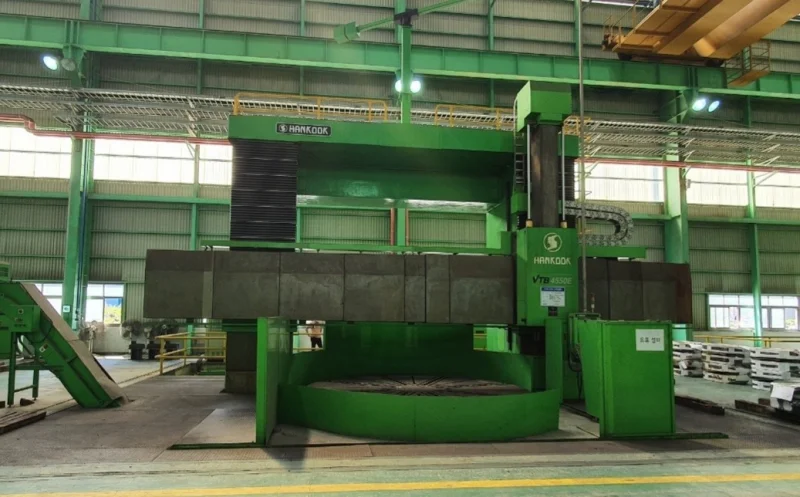

CNC VTL CHUCK 4500MM HANKOOK VTB 45/50E
MACHINE MORE INFORMATION
| Machine | CNC VTL CHUCK 4500MM |
| Brand | HANKOOK |
| Model | VTB 45/50E |
| Year | 2010 |
| Specification | TABLE 4500MM SWING 5000 MM TURNING HEIGHT 3000 MM Distance from table top to tool holder 3050 mm SPEED 1-60RPM Fanuc 31i-MA RAM SIZE 400X400MM LOAD ON TABLE 50000KG ISO TAPER BT50 X – axis (Saddle left-right) 2840 mm Z AXIS 2000MM W AXIS - 2000 MM Cutting feederate X -Max. 6000 mm/min Z -Max. 6000 mm/min Rapid feederate X -6000 mm/min Z -6000 mm W -500 mm MACHINE WEIGHT 160000 KG
|
